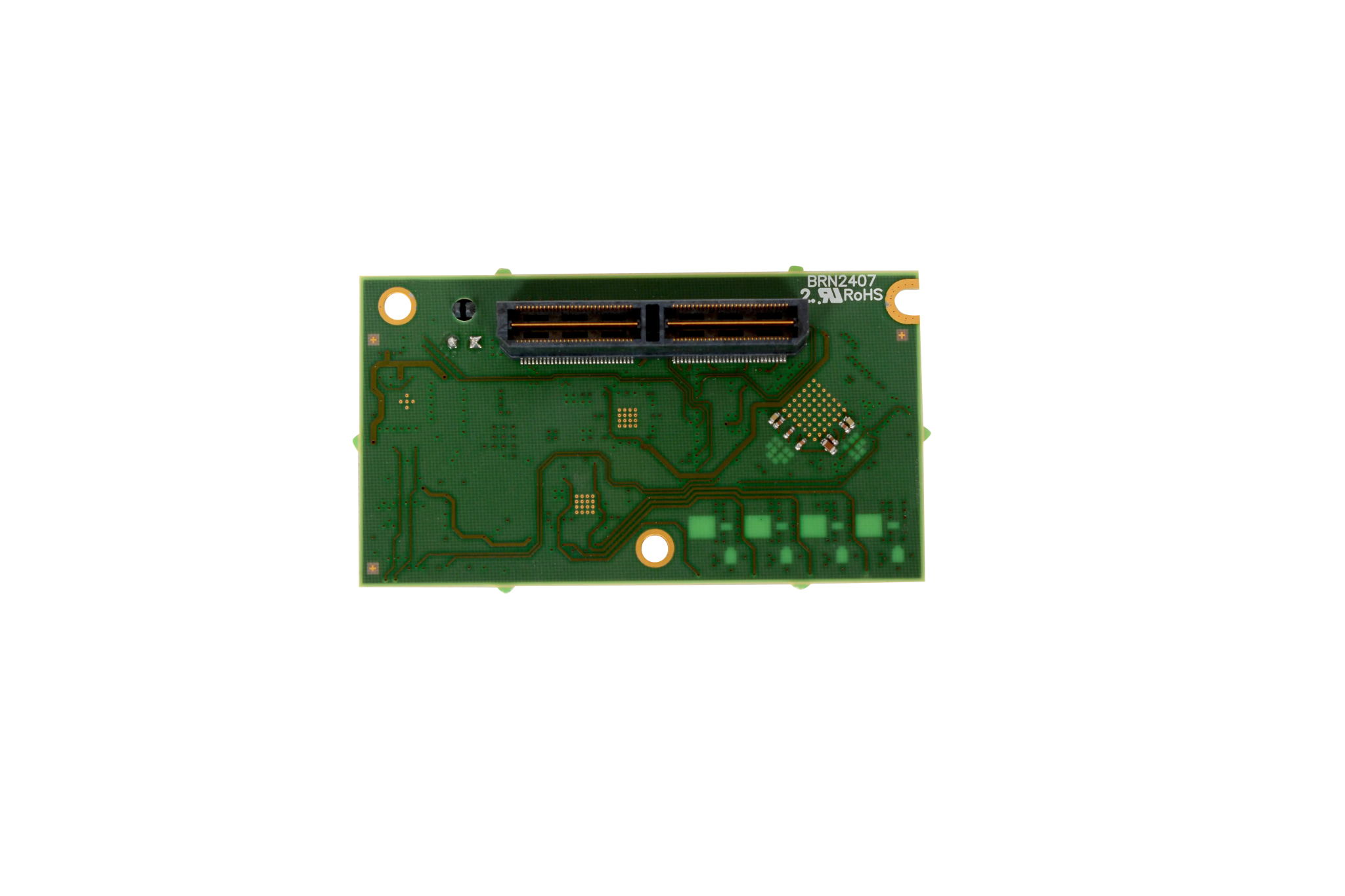

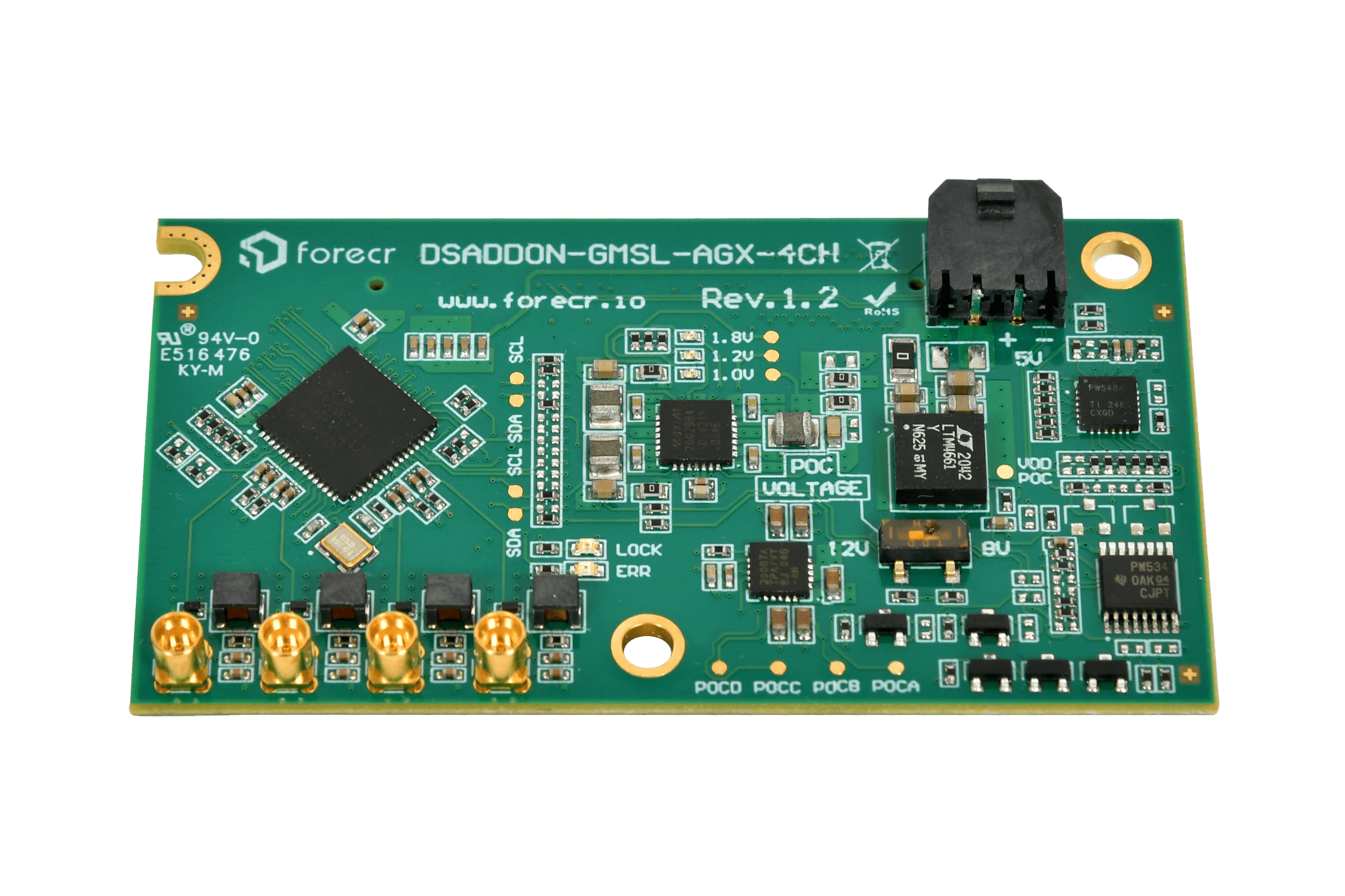

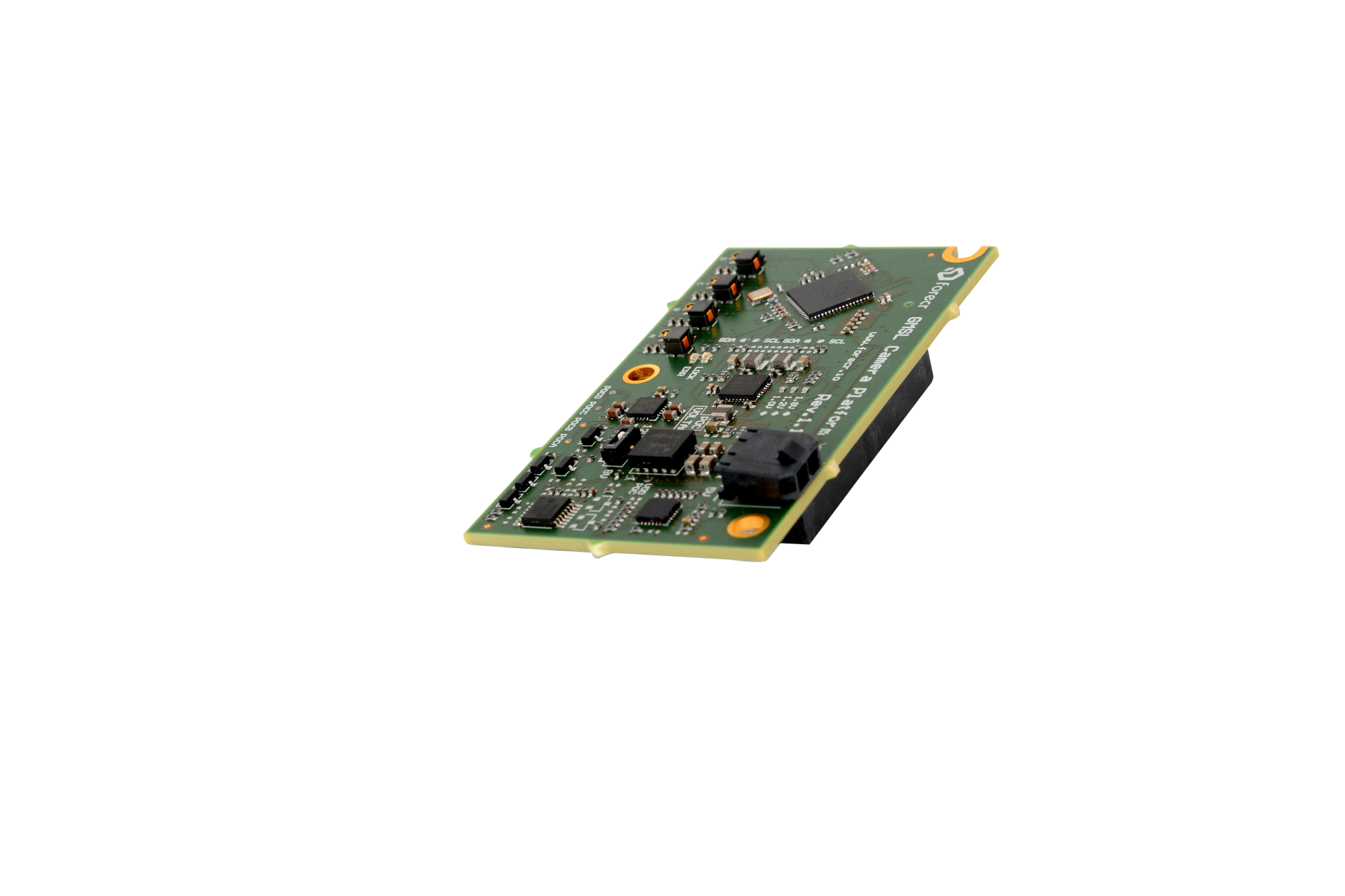

GMSL2 Camera Board for AGX Orin
The GMSL BOARD is based on the MAX96712 deserializer and is designed to support the GMSL2 protocol, providing robust connectivity for advanced camera systems. This product is engineered for IP-rated ruggedized systems and offers seamless integration with locking IPEX MHF4L LK connectors.
Choose options
GMSL2 Protocol Support
Ensures high-speed, reliable data transmission for up to four connected cameras.
Ruggedized Connectors
Utilizes locking IPEX MHF4L LK connectors, ideal for IP-rated systems demanding high durability.
Power over Coax (PoC)
Built-in PoC capabilities eliminate the need for separate power connections, streamlining installations and reducing wiring complexity.
Selectable PoC Voltage
Dual voltage options (8V & 12V) can be easily selected via DIP switch, providing flexibility to suit different application needs.
Current Limiting Protection
Each camera output is safeguarded with
current limiting protection, ensuring stable performance and enhanced safety.
Optional External Power
Supports an external 5V power connector for scenarios requiring higher power consumption, ensuring adaptability for various operational demands.
GMSL2 Camera Board for AGX Orin Technical Specifications
| Protocol |
GMSL2 |
| Camera Connections |
Up to 4 |
| Connectors |
Locking IPEX MHF4L LK |
| Power over Coax |
YES
|
| Current Output |
Up to 600mA per channel |
| PoC Voltage Options |
8V & 12V (selectable via DIP switch) |
| External Power Connector |
Optional 5V |
| Protection |
Current limiting protection per camera output |
