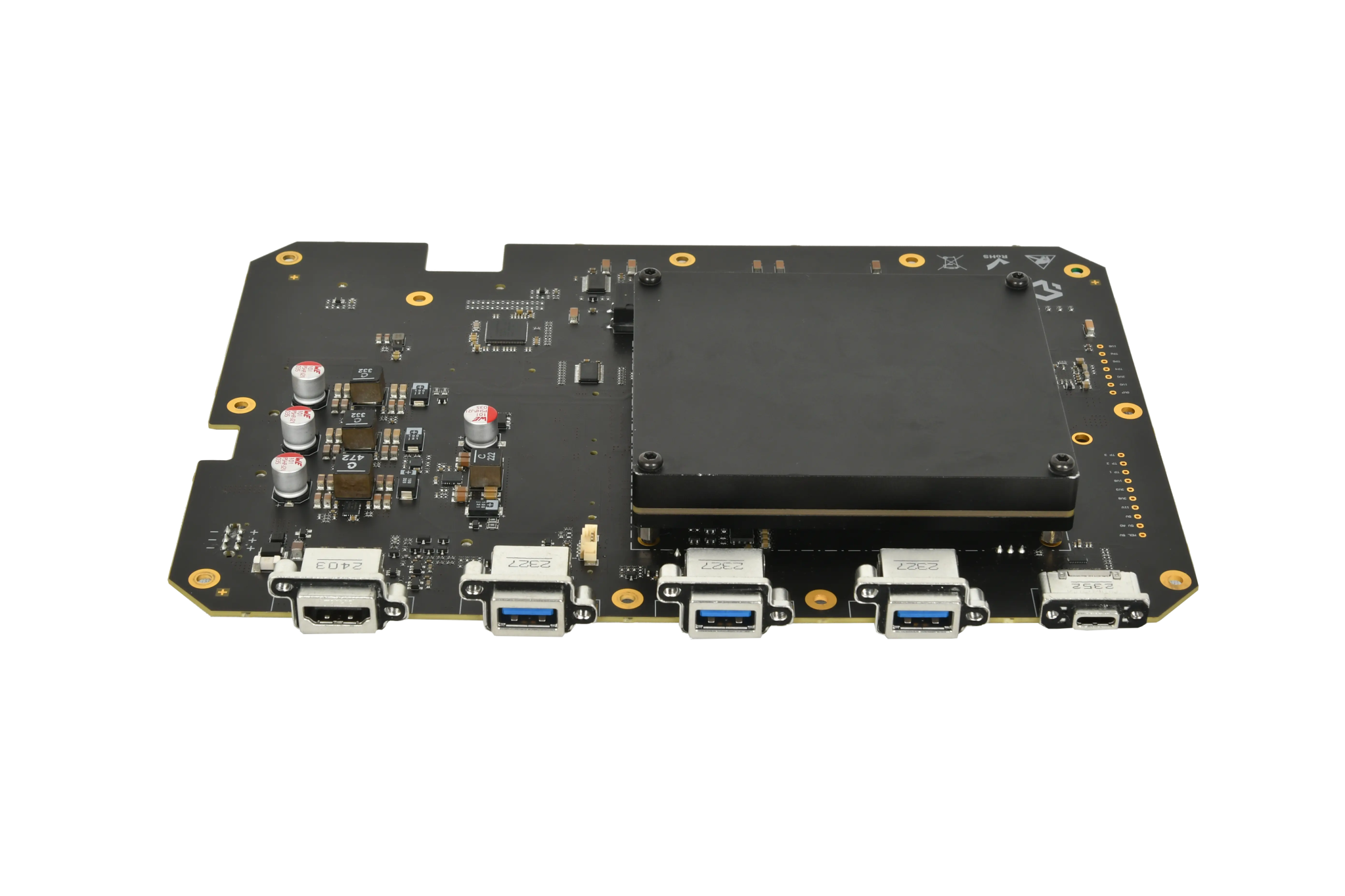

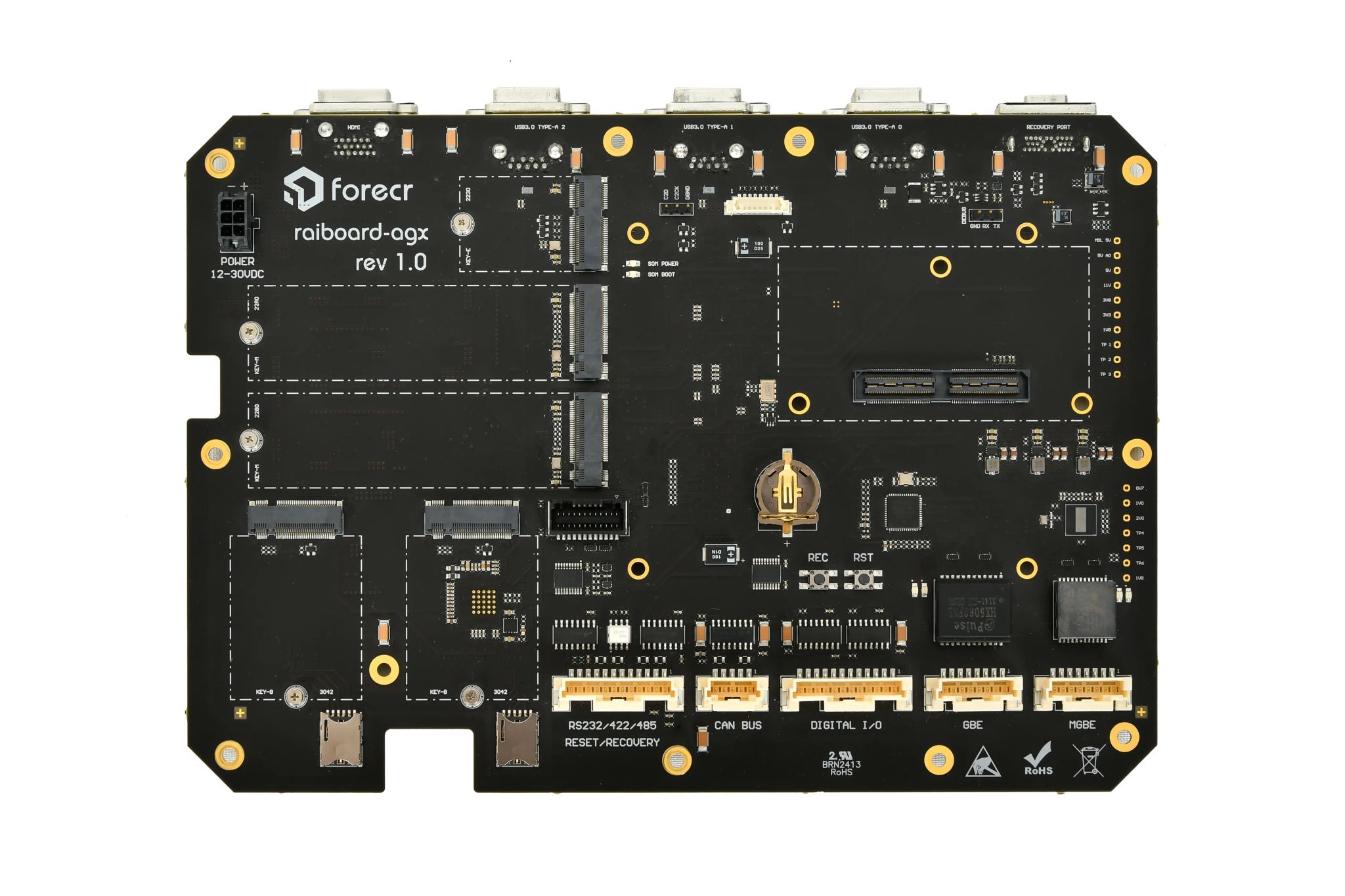

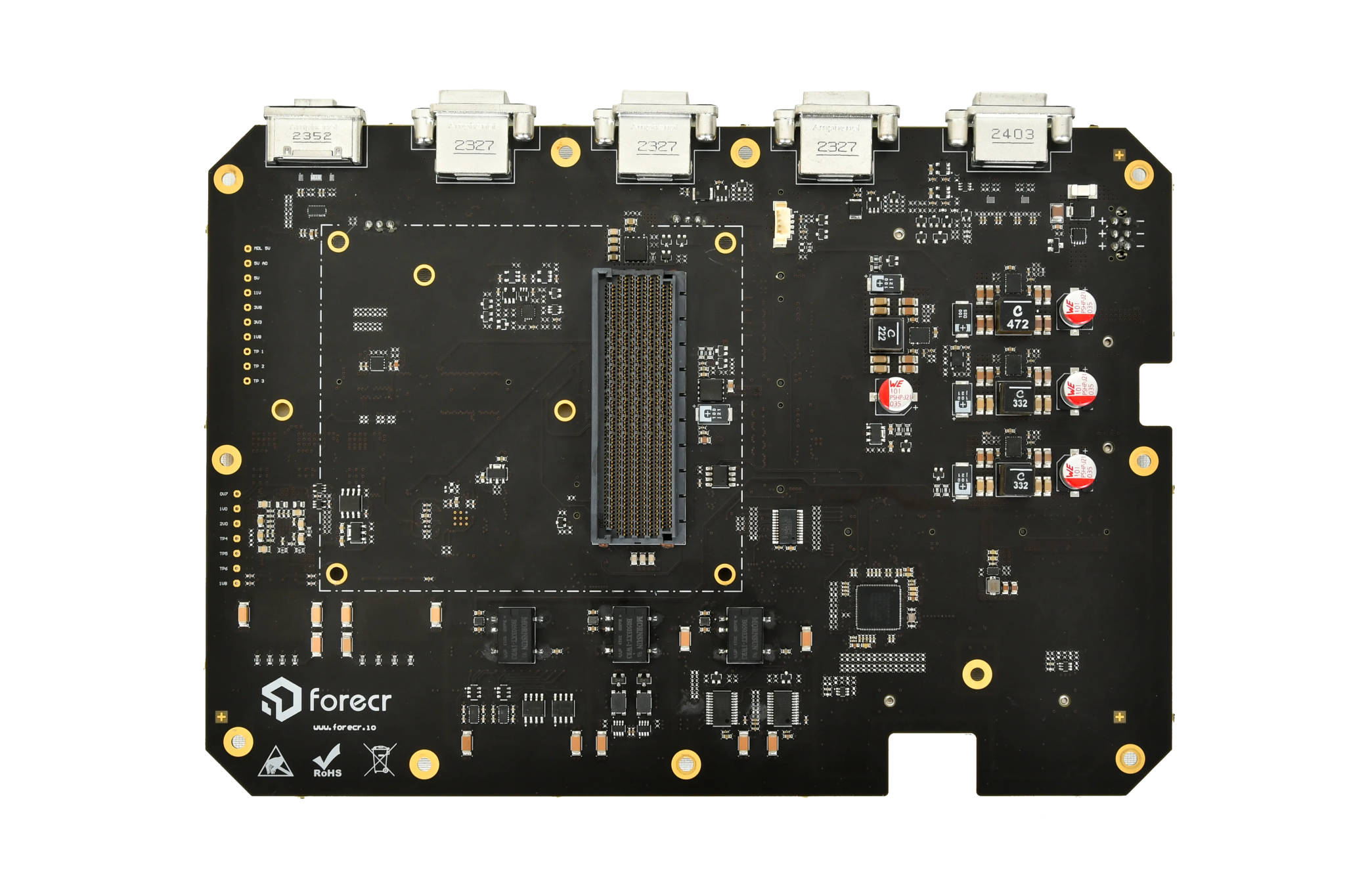

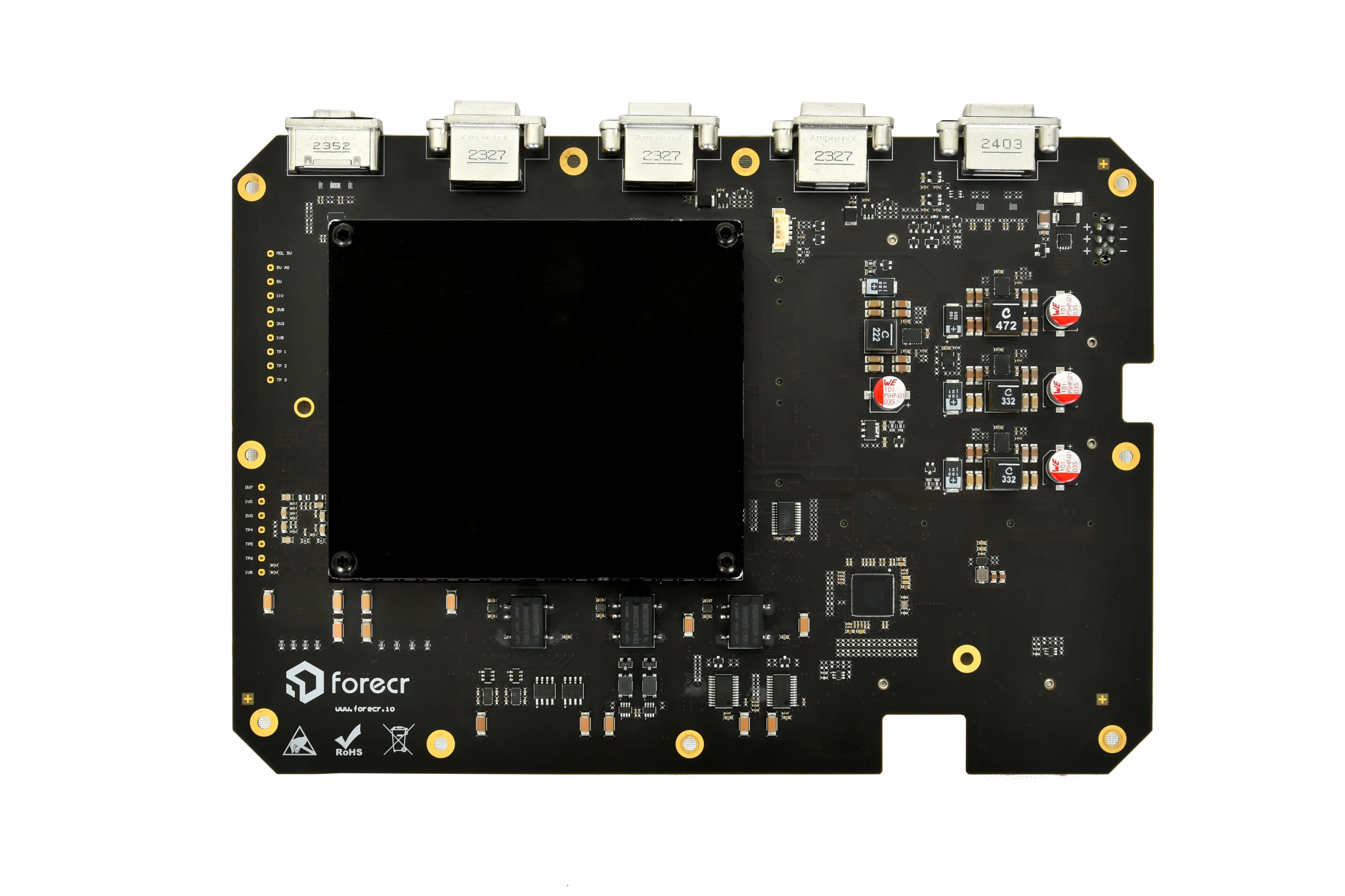

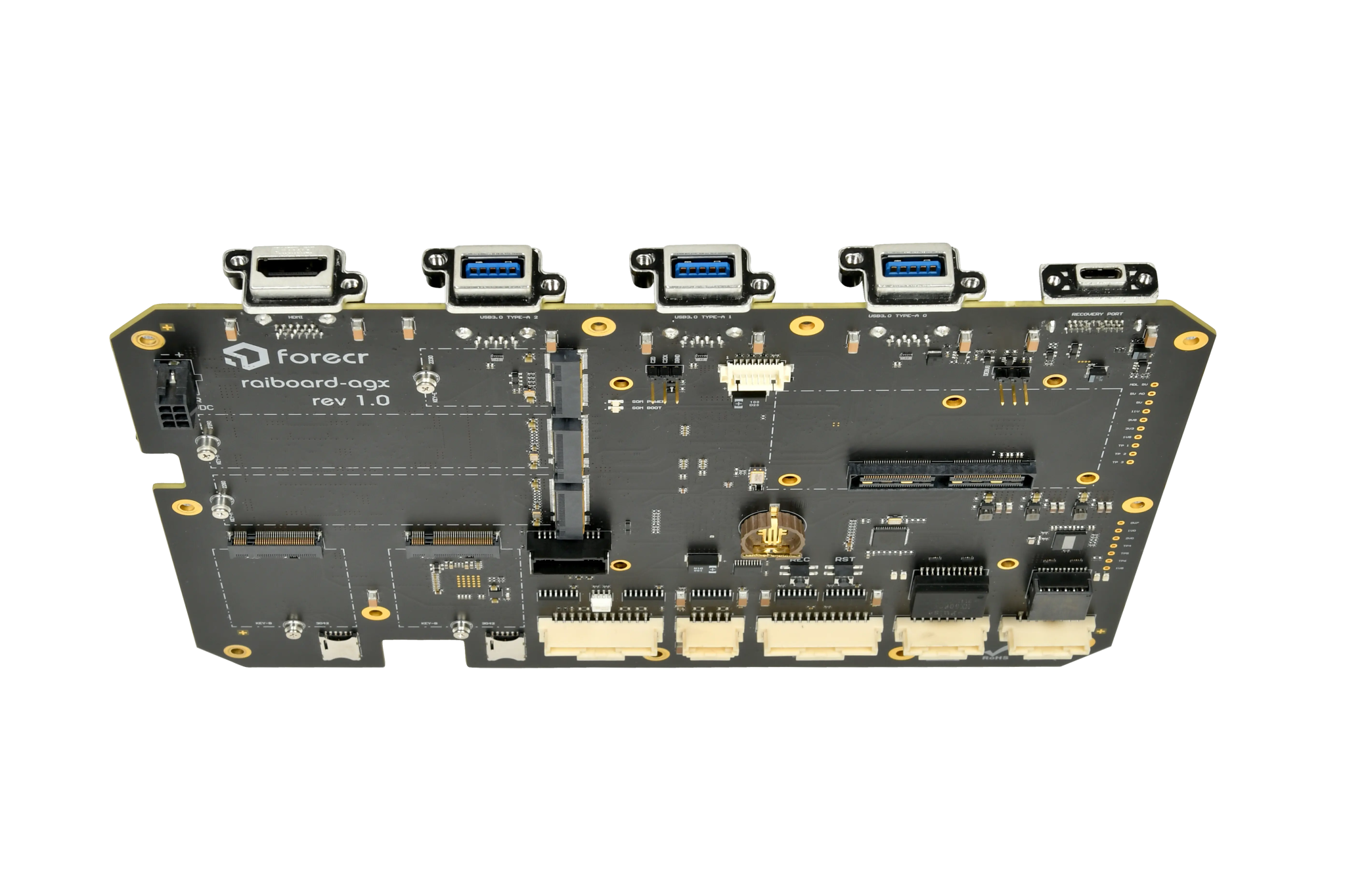

NVIDIA® Jetson AGX Orin Railway Grade Carrier Board - RAIBOARD-AGX
RAIBOARD-AGX is a robust and versatile carrier board designed to seamlessly integrate with the Jetson AGX Orin platform including the Industrial and 32GB/64GB variants.
Choose options
powerful solution for high data throughput and advanced communication capabilities
RAIBOARD-AGX is a robust and versatile carrier board designed to seamlessly integrate with the Jetson AGX Orin platform, including the Industrial and 32GB/64GB variants. Engineered for durability an performance in demanding environments, it features IP67-rated connectors for USB 3.0, HDMI, and Gigabit Ethernet, along with multiple expansion options such as M.2 sockets, CANBUS, RS232/RS422/RS485, and more.
Robust Industrial-Grade Design
RAIBOARD-AGX is built for high-performance industrial applications, ensuring durability and reliability in harsh environments. It is designed to seamlessly integrate with Jetson AGX Orin Industrial and 32GB/64GB variants.
IP67-Rated Connectors
The board features IP67-rated connectors for USB 3.0, HDMI, and Gigabit Ethernet, providing water and dust resistance, making it suitable for outdoor and rugged deployments.
High-Speed Connectivity
Equipped with a 10G Ethernet port (backward compatible with 1G), dual LTE/5G slots for seamless wireless connectivity, and WiFi support, ensuring high-speed data transfer for AI-driven applications.
Versatile Expansion and I/O Options
It includes multiple M.2 expansion slots (2x Key-M 2280, 2x Key-B 3042, 1x Key-E 2230) for NVMe storage, LTE/5G modules, and WiFi cards. Additional interfaces like CANBUS, RS232/RS422/RS485, and digital I/Os provide flexibility for various industrial applications.
Optimized for AI and Vision Processing
With CSI camera connectors and expansion options for GMSL or FPD-Link cameras, RAIBOARD-AGX is well-suited for vision-based AI applications such as railway security, surveillance, agriculture, and automation.
Wide Power Input and Compact Form Factor
Supports a 12V-30V DC power input for industrial compatibility, housed in a compact 167mm x 200mm, 288g form factor, ensuring easy integration into space-constrained environments
NVIDIA® Jetson AGX Orin Railway Grade Carrier Board - RAIBOARD-AGX Use Cases
RAILWAY
FORECR's railway-grade computing solutions, equipped with rugged BOX PCs integrated with NVIDIA Jetson modules, support critical railway applications such as train control, signaling, and trackside monitoring, ensuring safe and efficient operations in railway transportation networks.
TRANSPORTATION
FORECR's industrial-grade computing solutions, equipped with NVIDIA Jetson modules, are instrumental in enhancing transportation systems. These solutions enable robust onboard control, real-time data processing, and seamless integration with existing infrastructure, ensuring efficient and safe operation across various modes of transportation.
AUTONOMOUS SYSTEMS
Enable seamless integration into autonomous systems for various applications such as self-driving vehicles, drones, and robotic platforms, facilitating real-time decision-making and navigation in dynamic environments.
NVIDIA® Jetson AGX Orin Railway Grade Carrier Board - RAIBOARD-AGX Technical Specifications
| Supported Modules | NVIDIA Jetson AGX Orin 32GB/64GB NVIDIA Jetson AGX Orin Industrial |
| Memory |
32 GB 256-bit LPDDR5x |
| Graphics Interfaces |
HDMI (IP67 Connector) |
| Interfaces |
1x RGMII Gigabit Ethernet 1x 10G Ethernet 1x Type-C USB3.0 3x Type-A USB3.0 2x CAN Bus 2x RS232/RS422/RS485 4x Digital In, 4x Digital Out (Isolated) |
| Wireless Communication |
WiFi/Bluetooth/LTE Connectivity by extension sockets |
| Power Supply |
12-30 VDC |
| Extension Sockets |
1x Expansion Connector (UART, SPI, I2C, I2S) |
| Mass Storage |
2x Key-M 2280 2x Key-B 3042 1x Key-E 2230 |
| Ambient Conditions |
-25°C ... +85°C |
| Form Factor / Dimensions |
167mm x 200mm, 288 gr |
| Operating Systems |
Ubuntu Linux 20.04, 22.04 |
| Standards (with Raibox chassis) |
EN50155, EN45545-2 HL3, EN61373, EN60068, IP67 |
| JetPack Support |
JetPack 5.x / 6.x |
